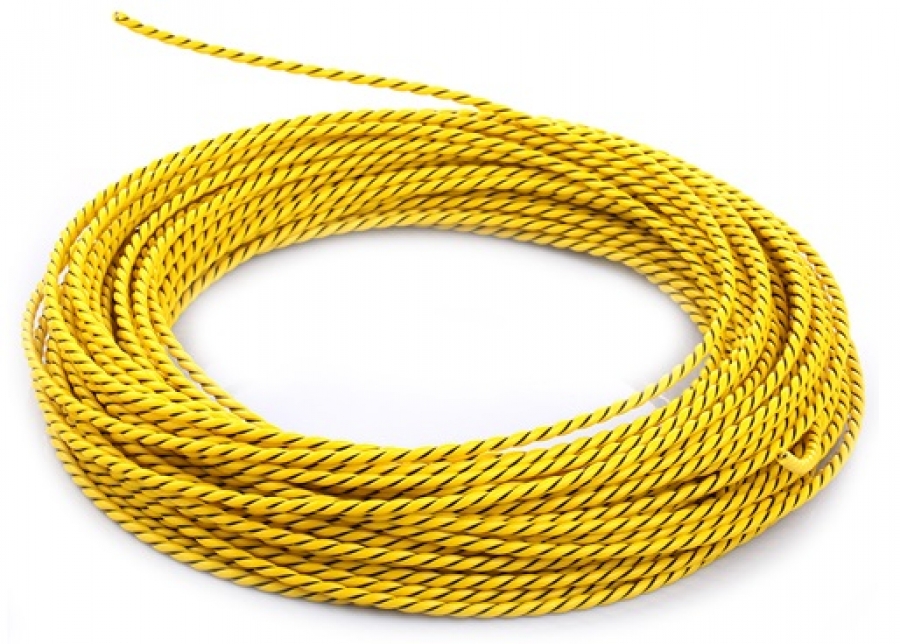

Non-Position Sensing Cable


  • Product Name: Non-Position Water Sensing Cable
  • Product Model: P-LFP1B
  • Cable diameter: 0.24 in(6.0mm)nominal
  • Sensing wires: 2*30 AWG with jacket of conductive fluoropolymer
  • Carrier: Fluoropolymer
  • Cable weight: (50 ft/15m length) 500g
  • Cable color: High-visibility yellow
  • Breaking strength: Cable only:160 Ib(72KG) .Including connectors:70 Ib(32kg)
  • Cut-through force: >50Ib with 0.005(>22kg with with 0.13mm) in blade;crosshead speed 0.2in/min
  • Abrasion resistance:    >65 cycles per UL719
  • Maximum continuous operating temperature: 70degree
  • Leak size to alarm(tap water): 2 in(50mm)maximum at any piont along sensing cable ,up to 5000 ft maximum system length
  • Drying time: Cable dries and resets within 15 seconds fo removal from standing water
  • Standard cleaning method: Wipe with clean damp cloth
  • Advanced technology for this Non-Position Water Sensing Cable: The conductive-polymer technology and fluoropolymer construction make P-LFP1B sensing cable mechanically strong and resistant to corrosion and abrasion.The cable is constructed of two sensing wires, embedded in a fluoropolymer carrer rod.
  • The alarm module constantly monitors the sensing cable for continuity
  • The rugged cable construction exposes no metal, and enables the cable to be reused even in corrosive environments.
