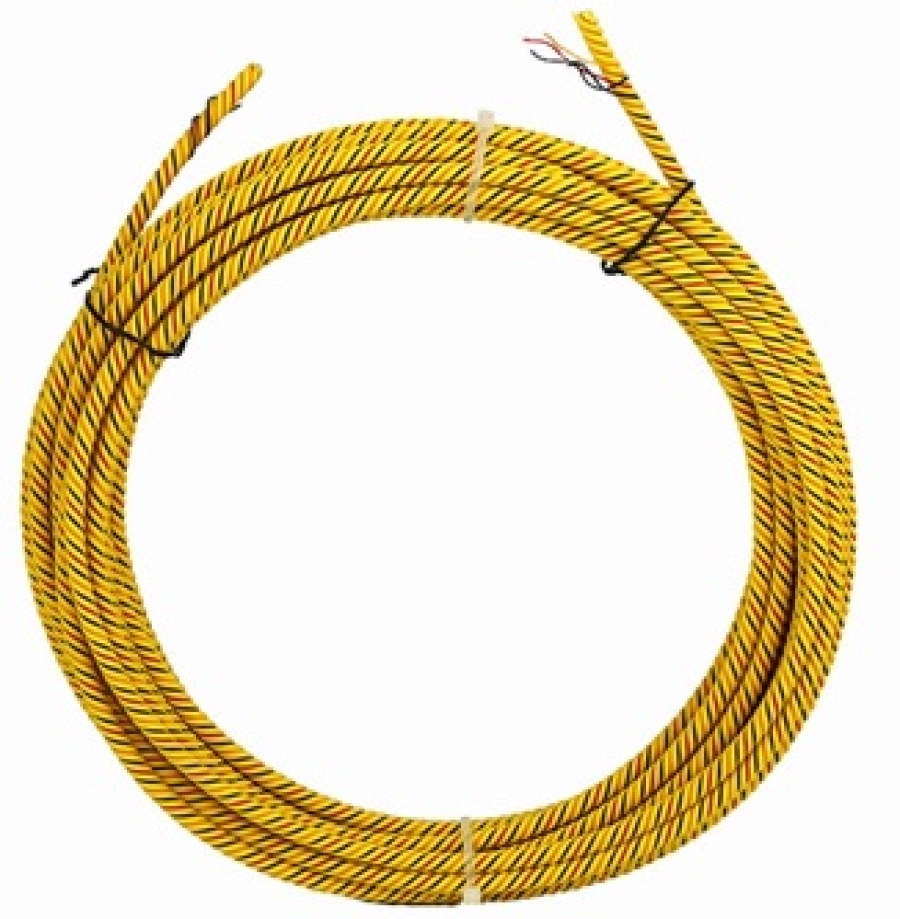

Position Sensing Cable


  • Position Water Sensing Cable Product Specification:
  • Model : P-LFP1000
  • Cable Diameter : 0.24 in(6.0mm)nominal
  • Sensing Wires : 2×30 AWG with jacket of conductive Fluoro polymer
  • Carrier : Fluoro polymer
  • Cable weight(50 ft/15m length) : 2.3 lb(1kg)
  • Cable color : High-visibility yellow
  • Position Water Sensing Cable technical information
  • Breaking strength : Cable only:160lb(72kg)including connectors:70lb(32kg)
  • Cut-through force : >50lb with 0.05(>22kg with 0.13mm)in blade/cross head speed 0.2in/min
  • Abrasion resistance : >65 cycles per UL719
  • Maximum continuous operating temperature : 70 degree



Performance Data:

Leak size to alarm(tap water) : 2 in (50mm) maximum at any point along sensing cable.up to 5000 ft maximum system length

Drying time : Cable dries and resets within 15 seconds removal rom standing water wash with clean damp cloth.



Distributed sensing:

P-LFP1000 sensing cables provide distributed leak detection and location over a wide range of areas.The cable is available in a variety of lengths to provide as much coverage as needed.



Design flexibility:

P-LFP1000 sensing cable is supplied with factory-installed plastic connectors that plug together. The cable is designed for a range of applications, including data center sub-floors, telecommunication rooms HVAC equipment locations,pipes, electrical vaults, storage areas, tanks and roofs. The cable is small, lightweight, and flexible, allowing easy installation. The smooth design allows for quick drying.



Advanced technology

The conductive-polymer technology and fluoropolymer construction make P-LFP1000 sensing cable mechanically strong and resistant to corrosion and abrasion.The cable is constructed of two sensing wires,an alarm signal wire,and a continuity wire embedded in a fluoropolymer carrier rod. The alarm module constantly monitors the sensing cable for continuity.The rugged cable construction exposes no metal,and enables the cable to be reused even in corrosive environments.
