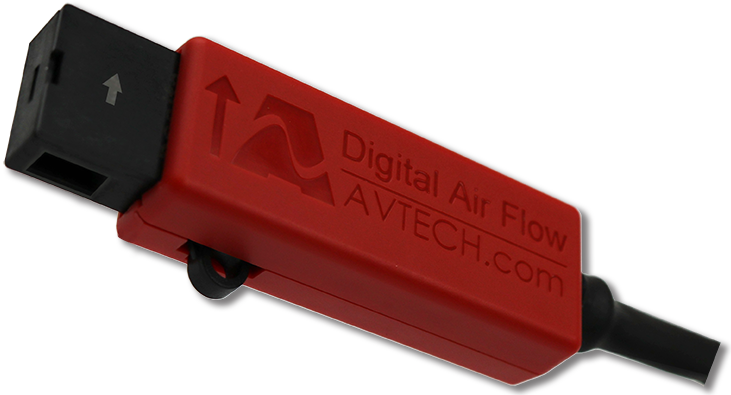

Air Flow Sensor


AVTECH's Air Flow Sensor provides real-time recognition of air flow stoppage. This Air Flow Sensor comes in two types, normally closed or normally open and includes a mounting clip and clamp. Typical use is to monitor continuous air flow in an HVAC duct, under a raised floor, or near a fan on a rack cabinet or important server.

Product # RMA-AF1-SEN   (NC)
Product # RMA-AF2-SEN   (NO)

Each Air Flow Sensor (NC) provides real-time recognition of air flow stoppage. This Air Movement Sensor is normally closed and includes a mounting clip and clamp. Typical use is for measuring air flow in an HVAC duct, under a raised floor, or near a fan on a rack cabinet or important server.

This is an instant 'Plug & Play' sensor via one of the switch sensor channels on the back of any compatible Room Alert ID box. Cable distance can be extended from the standard 7.5 meters to approximately 275 meters by using standard speaker wire, twisted pair or any reliable low voltage 2-wire cable.

Specifications

Environment Condition Monitored   Air Flow
 Real-Time Recognition  Air Flow Stop/Start (normally closed)
 Power Supply  Monitoring Unit
 Sensor Cable Type  2 Wire Sensor Cable
Sensor Cable Length  7.5m
 Maximum Sensor Cable Length  Approximately 275m
 Compatible Products  Room Alert 32W, 32E, 26W, 26WO, 24E, 12E, 11E, 7E, 4E & 3E
