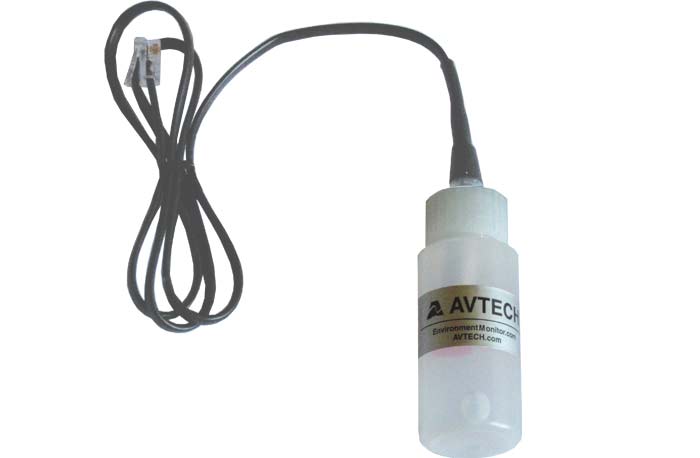

Digital Fluid Temperature Sensor


Monitor fluid temperature with AVTECH's Digital Fluid Temperature Sensor. This sensor provides real-time temperature values from -67 to 257 degrees Fahrenheit and/or -55 to 125 degrees Celsius when used with any Room Alert environment monitoring device. Accuracy is within +/- 2 C degrees. It's special sealed tube containing Propylene Glycol makes it an ideal sensor to monitor refrigerated items, tracking their temperature instead of the surrounding air temperature.

Sensor comes with cable lengths of 7.5, 15 and 30 meters

Product # TMP-DFT-SEN  (7.5 m)
Product # TMP-DFT50-SEN  (15 m)
Product # TMP-DFT100-SEN  (30 m)

Each AVTECH Digital Fluid Temperature Sensor provides real-time temperature values from -67 to 257 degrees Fahrenheit and/or -55 to 125 degrees Celsius. Accuracy is within + / - 2 C degrees. Each temperature probe is encased in a sealed tube containing Propylene Glycol. Propylene Glycol is a colorless liquid with extremely low freezing and high boiling points. Its non-conductive nature makes it a perfect sensor for monitoring fluid temperature in extreme environments such as labs that monitor vaccines, plasma, IV bags and/or other specimens, aquariums, refrigeration devices or other locations where fluid temperature must be monitored and/or regulated.

This is a dynamic sensor that provides temperature values every two seconds and feeds temperature data back to the Room Alert ID box for data logging, alerting and automatic corrective action. This is an instant 'Plug & Play' sensor via one of the standard RJ-11 jacks on any compatible Room Alert monitor.

Specifications:

Environment Condition Monitored Fluid Temperature
Real-Time Recognition Yes, Temperature
Digital Temperature Sensor Range -67 to 257 F (-55 to 125 C)
Digital Temperature Sensor Accuracy + / -  0.125
Power Supply Monitoring Unit
Digital Sensor Cable Type RJ-11 Cable
Digital Sensor Cable Length 7.5m , 15m , 30m
Maximum Digital Sensor Cable Length Approximately 30m
Compatible Monitoring Products Room Alert 32W, 32E, 12E, 4E, 3E
