Product # RMA-DAP-SEN (3 meters)
Product # RMA-DAP-SEN (7.5 meters)
Product # RMA-DAP-SEN (15 meters)
Product # RMA-DAP-SEN (30 meters)

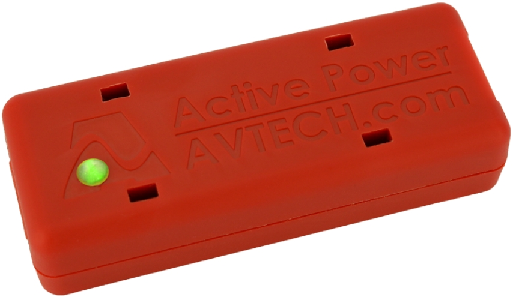

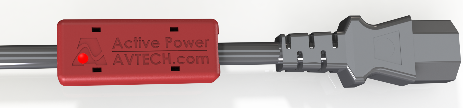

Each AVTECH Digital Active Power w/Temperature Sensor provides real-time power status of any AC powered electric device by simply strapping to any existing power cord. The power is considered 'active' when greater than approximately 100W. Accuracy is within +/- 2.5 watts. Additionally, this sensor provides real-time temperature values from -40 to 185° Fahrenheit or -40 to 85° Celsius. Accuracy is within +/- 2°C.
Before introducing the Active Power Sensor, organizations that wanted to monitor power status to electric devices usually needed to physically cut open a power cord to isolate specific conductors to measure current. This could lead to situations where power cables could be damaged if the procedure wasn’t done correctly. In other instances, electricians were required to attach monitoring within an electrical panel, or users would need to unplug a running device in order to install a power monitor.

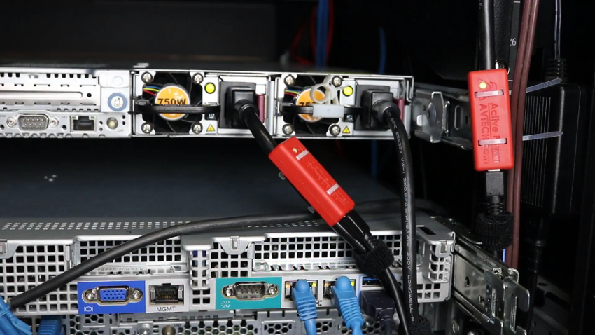

Since the primary push for the development of the Active Power Sensor was for the data center market, where high temperatures remain the leading cause of equipment failure, we decided to also incorporate temperature monitoring. While power failure to a server definitely indicates an immediate problem, monitoring the temperature directly behind a server where the exhaust fan is located helps track whether or not the server might be close to failure. Gradually increasing temperature readings can help alert users to potential power consumption or hardware failure issues.
The capabilities of the Active Power Sensor allow it to be used in many other scenarios as well. You can use it to monitor other IT hardware such as firewalls, switches, or phone system equipment, while you can go in a decidedly non-IT direction and monitor HVAC units, portable air conditioners, sump pumps, freezers, and more! Anything with an AC power cord can be effectively monitored by the Active Power Sensor.
This is a dynamic sensor that provides temperature and active power readings every two seconds and feeds temperature and power status data in real-time data back to the Room Alert monitor for data logging, alerting and automatic corrective action. This is an instant 'Plug & Play' sensor via one of the standard RJ-11 jacks on any compatible Room Alert monitor.
Sensor comes with cable lengths of 7.5, 15 and 30 meters
Before introducing the Active Power Sensor, organizations that wanted to monitor power status to electric devices usually needed to physically cut open a power cord to isolate specific conductors to measure current. This could lead to situations where power cables could be damaged if the procedure wasn’t done correctly. In other instances, electricians were required to attach monitoring within an electrical panel, or users would need to unplug a running device in order to install a power monitor.
Since the primary push for the development of the Active Power Sensor was for the data center market, where high temperatures remain the leading cause of equipment failure, we decided to also incorporate temperature monitoring. While power failure to a server definitely indicates an immediate problem, monitoring the temperature directly behind a server where the exhaust fan is located helps track whether or not the server might be close to failure. Gradually increasing temperature readings can help alert users to potential power consumption or hardware failure issues.
The capabilities of the Active Power Sensor allow it to be used in many other scenarios as well. You can use it to monitor other IT hardware such as firewalls, switches, or phone system equipment, while you can go in a decidedly non-IT direction and monitor HVAC units, portable air conditioners, sump pumps, freezers, and more! Anything with an AC power cord can be effectively monitored by the Active Power Sensor.
This is a dynamic sensor that provides temperature and active power readings every two seconds and feeds temperature and power status data in real-time data back to the Room Alert ID box for data logging, alerting and automatic corrective action. This is an instant 'Plug & Play' sensor via one of the standard RJ-11 jacks on any compatible Room Alert monitor.
Specifications
| Environment Condition Monitored | Temperature & Active Power |
| Real-Time Recognition | Yes, Temperature & Active Power |
| Digital Temperature Sensor Range | -40 to 185 F (-40 to 85 C) |
| Digital Temperature Sensor Accuracy | + / - 2 C |
| Digital Temperature Sensor Resolution | 0.03125°C |
| Active Power Range | Over 100W 'Active' |
| Digital Sensor Cable Type | Micro-USB to RJ-11 Cable |
| Power Supply | Monitoring Unit |
| Sensor Cable Length | 3 m |
| Maximum Sensor Cable Length | 30 m |
| Compatible Products | Room Alert 32S, 12S, 3S, 32E/W, 12E, 4E, 3E & 3W |
