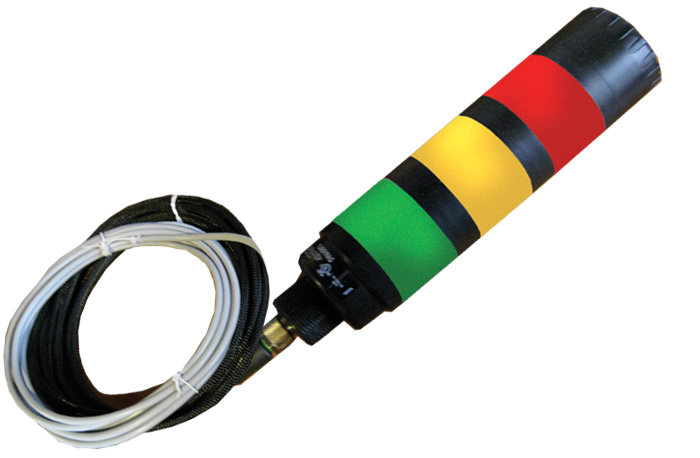

Light Tower w/Audio is designed to connect to a Room Alert 32E, 12E, 4E or 3E and will enhance the alerting capabilities of any Room Alert, Axis camera or other application on the network. Light tower w/ audio provides visual and audible alerting when an issue or event occurs. Light Tower lights and audio alarms can be automatically turned on/off when sensors (go in or out of an alert condition) or Axis camera sensors are triggered. Alarm warning lights and audio can also be turned on/off manually through the Room Alert 32E, 12E, 4E or 3E's web interface, AVTECH's Device ManageR software, or via SNMP.
Product # ST-RYG-LT
Light Tower w/Audio is designed to enhance the alerting capabilities of the Room Alert 32W, 32E, 12E, 4E or 3E monitors to include visual and audible alarm when an issue or event occurs. The visual alarm warning lights and audio alerts can also be turned on or off automatically or manually via the Room Alert web interface, AVTECH's Device ManageR software and SNMP Trap or SNMP Set commands. Any Room Alert or Axis camera on the network can enable or disable the lights or audio. The light and audio tower does not need to be directly attached to that unit. This capability allows the Light Towers to be mounted in any location where the lights are highly visible and trigger from across the network. Lights can be activated by alarms detected by sensors connected or by other devices remotely across the network.
The Light and Audio Tower is connected to the Room Alert 4E via the Light Tower Connection Port on the back of the Room Alert 4E monitor. Room Alert 32W, 32E, 12E and 3E monitors require a Light Tower & Relay Adapter (which includes a Relay Switch) in order to connect the Light Tower. The Light Tower w/Audio has an adjustable audio alarm with an intensity range of 0 dB to 95 dB (at 1m). It can be adjusted by simply unscrewing the cover or removing the center plug. The Light w/Audio tower comes standard with a 15' cable that connects via easy 'twist & click' connectors. It can be extended to just over 100' with AVTECH's 25´ Light Tower w/Audio Extension Cable ONLY.
The Light and Audio Tower is connected to the Room Alert 4E via the Light Tower Connection Port on the back of the Room Alert 4E monitor. Room Alert 32W, 32E, 12E and 3E monitors require a Light Tower & Relay Adapter (which includes a Relay Switch) in order to connect the Light Tower. The Light Tower w/Audio has an adjustable audio alarm with an intensity range of 0 dB to 95 dB (at 1m). It can be adjusted by simply unscrewing the cover or removing the center plug. The Light w/Audio tower comes standard with a 15' cable that connects via easy 'twist & click' connectors. It can be extended to just over 100' with AVTECH's 25´ Light Tower w/Audio Extension Cable ONLY.
Specifications:
| External Light Tower | Yes, Red-Yellow-Green w/Audio |
| Oscillation Frequency | 2.7 KHz +/- 50Hz (Max Intensity 95 dB @ 1m) |
| Adjustable Audio | Yes |
| Mounting Bracket | Yes, Compatible w/1U Rack, Wall or Other |
| Sensor Cable Type | AVTECH Custom Cable |
| Sensor Cable Length | 15' (Light Tower w/Audio Extension Cable Available) |
| Maximum Sensor Cable Length | Approximately 30 m |
| Compatible Products | Room Alert 32W, 32E, 12E, & 3E with Light Tower & Relay Adapter & 4E |
