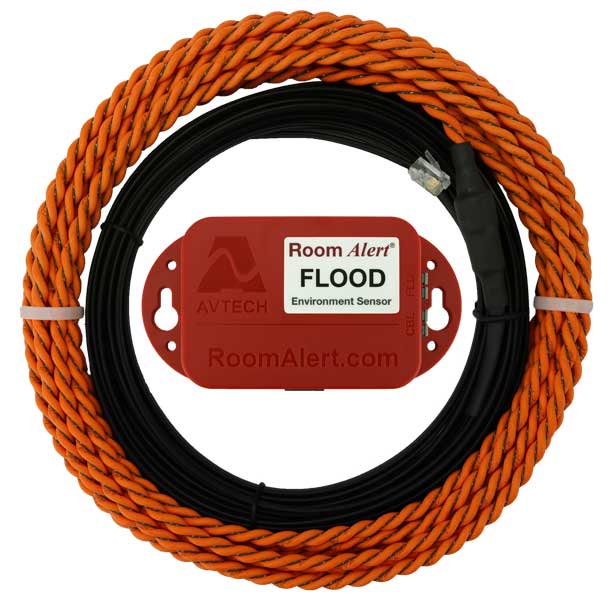

Flood Sensor w/ Cable


AVTECH's Flood Sensor with attached 8' sensor cable is activated by liquid (i.e. water, fluid, etc.) making contact with the attached Flood Sensor Cable of any length. Once liquid is detected the Flood Sensor triggers an alarm condition allowing the Room Alert hardware, Device ManageR software and/or other monitoring application to send out alerts and/or take automatic corrective action.

Sensor comes with cable lengths of 2.5, 7.5, and 15 meters

Product # RMA-F008-SEN   (2.5 meters)
Product # RMA-F024-SEN   (7.5 meters)
Product # RMA-F050-SEN   (15 meters)

Each AVTECH Flood Sensor with attached sensor cable is activated by liquid (i.e. water, fluid, etc.) making contact with the attached Flood Sensor Cable of any length. Once liquid is detected the Flood Sensor triggers an alarm condition allowing the Room Alert hardware, Device ManageR software and/or other monitoring application to send out alerts and/or take automatic corrective action.

This is an instant 'Plug & Play' flood warning device via one of the switch sensor channels on the back of any compatible Room Alert ID box. Cable distance can be extended from the standard 25' to approximately 900' by using standard speaker wire, twisted pair or any reliable low voltage 2-wire cable in order to place Flood Sensor and attached sensor cable away from Room Alert unit, on a different floor, above a drop ceiling or under a raised flood.

Specifications

 Environment Condition Monitored  Water/Flood
 Real-Time Recognition  Water/Flood
 Power Supply  5VDC 1A Adapter
 Flood Sensor Cable Length  15 m / 7.5 m / 2.5 m
 Expandable Cable Length  2.5 Lengths via AVTECH's 8' Flood Cable Extender(s)
 Sensor Cable Type  2 Wire Sensor Cable
Sensor Cable Length   7.5 m / 2.5 m
 Maximum Sensor Cable Length  Approximately 275
 Compatible Products  Room Alert 32W, 32E, 26W, 26WO, 24E, 12E, 11E, 7E, 4E & 3E
