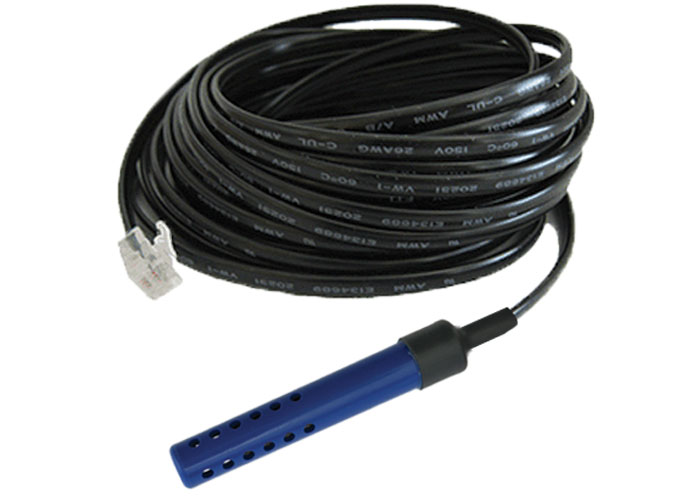

Digital Temperature & Humidity


Monitor temperature, humidity and heat index (feels like temperature) with AVTECH's Digital Temperature & Humidity Sensor. This sensor provides real-time temperature values from -40 to 185 degrees Fahrenheit and/or -40 to 85 degrees Celsius when used with any Room Alert environment monitoring device. Temperature accuracy is within + / - 2 C degrees. The humidity range is from 5% to 95% relative humidity (RH) non-condensing. Humidity accuracy is within +/- 4.5% RH at 5 to 59% RH and within +/- 6.5% RH at 60 to 95% RH.

Sensor comes with cable lengths of 7.5, 15 and 30 meters

Product # RMA-DTH-SEN  (7.5 meters)
Product # RMA-DTH50-SEN  (15 meters)
Product # RMA-DTH100-SEN  (30 meters)

Each AVTECH Digital Temperature & Humidity Sensor provides real-time temperature values from -40 to 185 degrees Fahrenheit and/or -40 to 85 degrees Celsius. Accuracy is within + / - 2 C degrees. The humidity range is from 5% to 95% relative humidity (RH) non-condensing. Humidity accuracy is within +/- 4.5% RH at 5 to 59% RH and within +/- 6.5% RH at 60 to 95% RH.

This is a dynamic sensor that provides temperature and humidity values every two seconds and feeds temperature and humidity in real-time data back to the Room Alert ID box for data logging, alerting and automatic corrective action. This is an instant 'Plug & Play' sensor via one of the standard RJ-11 jacks on any compatible Room Alert monitor.

Specifications:

Environment Condition Monitored Temperature & Humidity
Real-Time Recognition Yes, Temperature & Humidity
Digital Temperature Sensor Range -40 to 185 F (-40 to 85 C)
Digital Temperature Sensor Accuracy + / -  0.125
Digital Humidity Sensor Range 5% to 95% RH Non-Condensing
Digital Humidity Sensor Accuracy + / -  3.5%
Power Supply Monitoring Unit
Digital Sensor Cable Type RJ-11 Cable
Digital Sensor Cable Length 7.5m , 15m , 30m
Maximum Digital Sensor Cable Length Approximately 30m
Compatible Products Room Alert 32W, 32E, 12E, 4E & 3E
