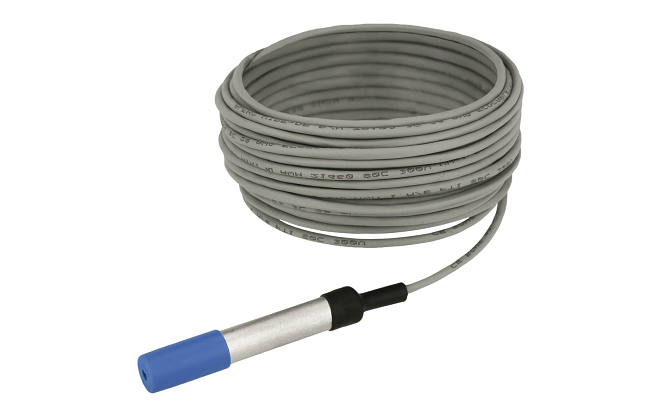

Digital Shielded Temperature & Humidity


Monitor temperature, humidity and heat index (feels like temperature) with AVTECH's Digital Shielded Temperature & Humidity Sensor. This sensor provides real-time temperature values from -40 to 185 degrees Fahrenheit and/or -40 to 85 degrees Celsius when used with any Room Alert environment monitoring device. Temperature accuracy is within + / - 2 C degrees. The humidity range is from 5% to 95% relative humidity (RH) non-condensing. Humidity accuracy is within +/- 4.5% RH at 5 to 59% RH and within +/- 6.5% RH at 60 to 95% RH.

Sensor comes with cable lengths of 7.5, 15 and 30 meters

Product # RMA-DTHS-SEN  (7.5 meters)
Product # RMA-DTHS50-SEN  (15 meters)
Product # RMA-DTHS100-SEN  (30 meters)

Each AVTECH Digital Shielded Temperature & Humidity Sensor provides real-time temperature values from -40 to 185 degrees Fahrenheit and/or -40 to 85 degrees Celsius. Accuracy is within + / - 2 C degrees. The humidity range is from 5% to 95% relative humidity (RH) non-condensing. Humidity accuracy is within +/- 4.5% RH at 5 to 59% RH and within +/- 6.5% RH at 60 to 95% RH.

This is a dynamic sensor that provides temperature and humidity values every two seconds and feeds temperature and humidity in real-time data back to the Room Alert ID box for data logging, alerting and automatic corrective action. The shielded sensor cable is ideal for use in environments with high electrical noise or EMI. This is an instant 'Plug & Play' sensor via one of the standard RJ-11 jacks on any compatible Room Alert monitor.

Specifications:

Environment Condition Monitored Temperature & Humidity
Real-Time Recognition Yes, Temperature & Humidity
Digital Temperature Sensor Range -40 to 185 F (-40 to 85 C)
Digital Temperature Sensor Accuracy + / -  0.125
Digital Humidity Sensor Range 5% to 95% RH Non-Condensing
Digital Humidity Sensor Accuracy + / -  3.5%
Power Supply Monitoring Unit
Digital Sensor Cable Type Foil shielded, mPPE insultated RJ-11 Cable
Digital Sensor Cable Length 7.5m , 15m , 30m
Maximum Digital Sensor Cable Length Approximately 30m
Compatible Products Room Alert 32W, 32E, 12E, 4E & 3E
