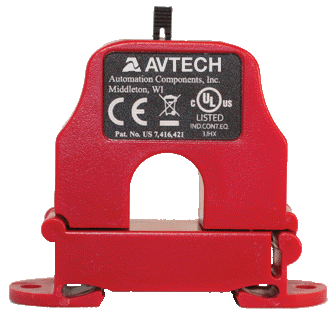

Current Loop Sensor


Current Loop 1 Sensor monitors the electrical current flowing through a single-phase powered cable. It outputs a signal of 0 to 5 VDC (volts of direct current), which your built-in or external Room Alert Analog Sensor Port then converts into an amp (A) reading. By pairing a Current Loop with your Room Alert monitor, you can easily determine the power consumption of an electrical appliance or device at your facility. The Current Loop can be easily moved to various appliances as needed and will help you monitor power consumption to determine if a power drop might be causing a problem or if an appliance is drawing too much power. The cost of electricity is one of the fastest growing costs and concerns for IT managers so knowing that a problem exists is the first step in resolving the problem.

Product # RMA-CL1-SEN  (50 Amp)
Product # RMA-CL1-SEN  (250 Amp)

Current Loop Sensor monitors the electrical current flowing through a single-phase powered cable. It outputs a signal of 0 to 5 VDC (volts of direct current), which your built-in or external Room Alert Analog Sensor Port then converts into an amp (A) reading. A current flow sensor paired with your Room Alert monitor, can be easily be used as an energy consumption monitor of an electrical appliance or device at your facility. The Current Loop can be easily moved to various appliances as needed and will help you monitor power consumption to determine if a power drop might be causing a problem or if an appliance is drawing too much power. The cost of electricity is one of the fastest growing costs and concerns for IT managers so knowing that a problem exists is the first step in resolving the problem.

Specifications:

 Environment Condition Monitored  Electrical current (amps)
 Type Of Sensor  Switch
Power Supply   Induced from monitored conductor
 Included Sensor Cable Type  Low-voltage 2-wire speaker cable
Included Sensor Cable Length   7.5m
 Maximum Sensor Cable Length  30m
 Output Voltage  0 to 5 VDC
 Input Amperage Range  0 to 50 A   /   0 to 250 A
 Accuracy  +/- 1.0% (5 to 100% FSO)
Response Time   < 100 mS
 Operating Frequency Range  50 to 600 Hz
 Isolation Voltage  2,200 VAC
Maximum Sensing Current Voltage   600 VAC
Aperture (Hole) Size   0.75" (Accepts cables up to 350 MCM)
DIN Rail Size  35 mm
Operating Temperature Range  -15 to 40º C (5 to 104º F)
Operating Humidity Range  0 to 95% RH, non-condensing
Enclosure Rating  UL94-5VB
Compatible Products  Room Alert Analog Sensor Port (built-in or external)
